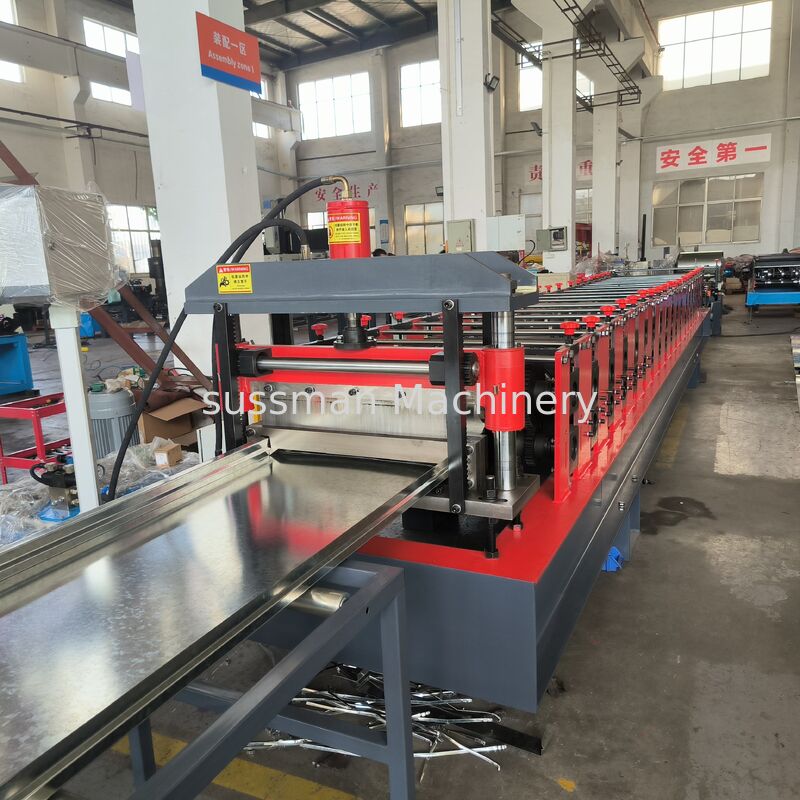

New Design Automatic Galvanized Steel Soffit Fascia Panel Roll Forming Machine
1.Soffit Fascia Panel Roll Forming Machine Technical Parameter
| 1 |
Suitable to process |
Aluminium PPGI and galvanized steel |
| 2 |
Width of the plate |
As customer need |
| 3 |
Thickness of the plate |
0.7-1.2mm |
| 4 |
De-coiler |
Passive one, can load 5 tons raw material |
| 5 |
Rollers for forming |
About 18 rollers |
| 6 |
Diameter of the roller |
Φ75mm |
| 7 |
Rolling material |
High Grade Steel 45# |
| 8 |
Main motor power |
7.5kw |
| 9 |
Productivity |
About 3-5m/min excluding stop cutting time |
| 10 |
Cutting method |
Hydraulic cutting |
| 11 |
Material of the cutting blade |
Cr12Mov |
| 12 |
Hydraulic cutting power |
5.5kw |
| 13 |
Processing precision |
Within 1.50mm |
| 14 |
Control system |
Siemems PLC control |
| 15 |
Main structure of the machine |
350 H steel |
| 16 |
Weight |
About 6.5 T |
| 17 |
Dimensions |
7.5*1.3*1.0m |
| 18 |
Voltage |
220V 60Hz 3phases,or according to your request |
2. Soffit Fascia Panel Machine’s Components
| Item |
Components Name |
Quantity |
| 1 |
5T Passive Decoiler |
1 set |
| 2 |
Feeding with guide |
1 unit |
| 3 |
Roll Forming Machine |
1 set |
| 4 |
Hydraulic Station |
1 set |
| 5 |
PLC control Cabinet |
1 set |
| 6 |
Cutting blade |
1 unit |
| 7 |
Auto staker |
1 set |
3. Soffit Fascia Panel Profile Drawing
Samples from our machine making:
4.Appliction:
Soffit and Fascia Panels are two core components of the roofline system, often collectively referred to
as roofline boards. They not only enhance the exterior aesthetics of a house but also play a crucial role
in protecting the eaves structure, supporting gutters, and ensuring attic ventilation.
5.About us
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory
founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll
forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming
machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc.
Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket,
Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction
enterprises, automobile industry, iron and steel production enterprises's growing demand.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of
new technologies, development of new products, the application of advanced scientific management, and strive to make
product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers.
Our success is refine on and try to be better and better.
